Triple Glazed Hinged-Opening Flat Rooflights
Designed and handcrafted to the highest standards in our UK factory, the Roof Maker Hinged Opening rooflight is perfect for rooms where you need ventilation, such as busy kitchens or steamy bathrooms.

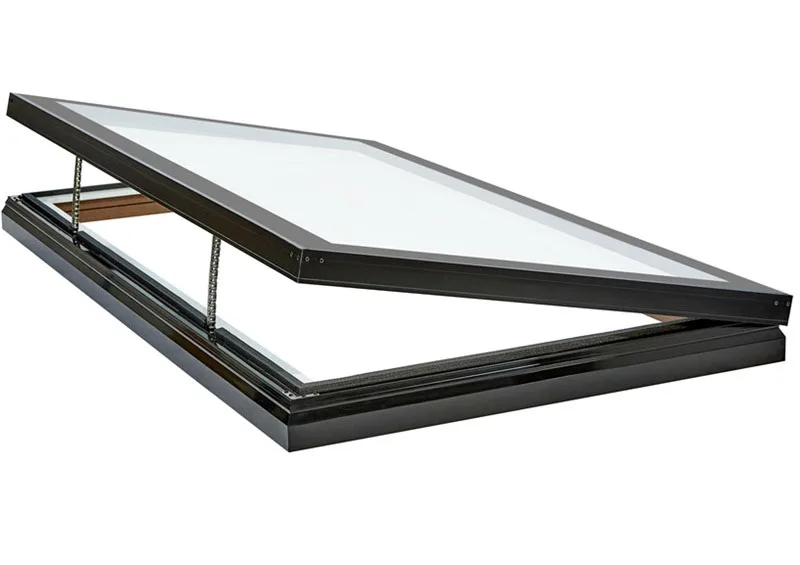

The Hinged Opener is ideal for flat roofs where you’d like to install a skylight and features a contemporary, minimal design with frameless glazing that lets water run away without collecting in the casing. It features a concealed chain actuated mechanism which can be operated by a wall-mounted switch or remote control and rain sensor, allowing you to open part way, or up to 250mm, to let air into the room below.
Because the aluminium frame sits outside your aperture, you’ll see more glass and enjoy more natural light than with competitor rooflights which base their sizes on the external, making them up to 20% smaller with less natural light. If your property is overlooked by another, you can choose the optional Satinova glass to protect your privacy, but still, allow plenty of light through into your room. Overall, our hinged-opening rooflights are perfect for kitchens and rooms where you need to ventilate and introduce fresh air and sunlight.
To comply with building and safety regulations, all rooflights must be fitted with an upstand to keep the glazing unit raised above the surface of the roof and with a minimum of a 5 degree fall to promote rain run-off. The upstand will need to be pre-weathered (flashed in) which can be done with your chosen roof membrane or a separate flashing kit. This is not the responsibility of Roof Maker and will need to be completed by your builder or roofing contractor.
Product Overview
Our glazing is tested to BS EN1279 parts 2 & 3.
Concealed chain actuators allow you to open part way, or up to as much as 250mm, allowing ventilation of the room below.
Powder coated aluminium with composite built in kerb design.

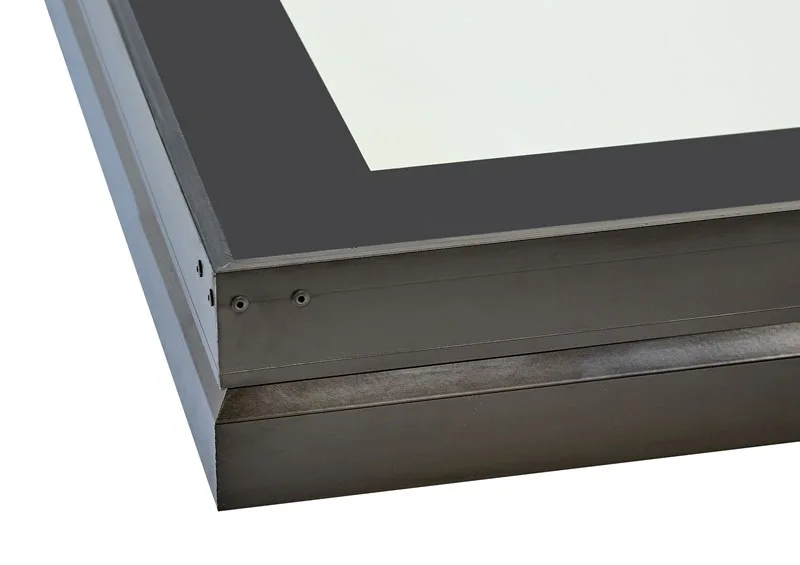

Thermally broken aluminium lid for thermal performance and weather proofing.
Ceramic black glass border protects glass seals from UV damage.
Choice of glass specifications and tints to suit your requirements.
Switch controlled as standard, with the option of remote-controlled operation with rain sensor.

Opens up to 250mm for ventilation

Easy-Clean glass as standard

Effortless, 1 button operation
Key Features
Suitable for flat roofs of between 0 and 15 degrees
Roof Maker manufactures all its own high performance glass units in house whilst most competitor buy them in. This gives complete control over all materials and no compromise in quality.
Available double or triple glazed
Ug-values as low as 0.6w/m2k
Full aluminium, thermally broken frame
Quick and easy to install
Easy-clean glass
Frequently Asked Questions
► What is an opening rooflight?
At Roof Maker, our electric opening roof lights can be opened and closed, allowing you to control the amount of fresh air and natural light that enters your home.
At Roof Maker, our electric opening rooflights can be operated using a remote control, making them ideal for hard-to-reach spaces or for those who require greater convenience.
► How much do opening rooflights open?
Our hinged opening rooflights feature a concealed chain actuated mechanism allowing you to open partway, or up to 250mm.
► How long will delivery of your opening rooflight take?
Because our opening rooflights are bespoke and made to order, our lead times will vary based on the specification that you choose. However, it may be as quick as 10 – 15 working days. Please talk to our helpful Sales team to discuss lead times for your chosen product.
► Do I need planning permission for a hinged opening rooflight?
Generally speaking, you will not need planning permission as long as your skylight doesn’t exceed 150mm above the roof plane, is higher than the highest point of the roof, or alters limitations set on listed buildings or conservation areas.
Optional Upgrades
Choice of specialist glass types
Different glass tints
Jet black (RAL 9005) or Anthracite Grey (RAL 7016) frames
Remote controlled operation with rain sensor
Remote controlled electric blackout fabric blinds
Downloads
Product Sheets
2D/3D Files
