WALL ABUTMENT ROOFLIGHTS

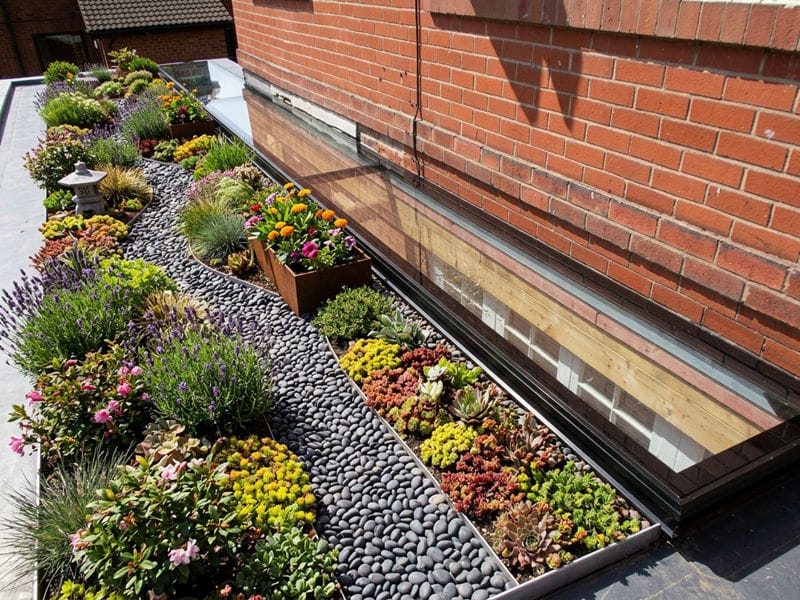

The Wall Abutment Rooflight is British manufactured and handcrafted to the highest specifications. This unique rooflight is designed to run along an adjacent wall on flat roofs pitched between 0-10 degrees allowing greater flexibility of placement in your home.

Bring more light into your room with a Roof Maker Wall Abutment Rooflight. The non-visible frame floods your room with light and makes the most of your available space. Choose from landscape or portrait to suit your needs. Call us for more details.

Key Features
– Bespoke sizing available from 350mm x 350mm, up to; 2400mm x 1200mm, 3000mm x 1000mm and 1700mm x 1700mm
– Choice of triple or quadruple glazed
– Ug-values of 0.6w/m2k as standard and as low as 0.2w/m2k with quad glazing
– 20-year unit seal warranty
– 80% deeper seals than industry standard
– Marine-grade aluminium frame for incredible durability
– Easy clean glass as standard
– Jet black (RAL 9005) or Anthracite Grey (RAL 7016) frames

Optional Upgrades
– Choice of specialist glass types
– Different glass tints

Speak to us: phone icon 0116 269 6297

Get your quote online

Our products are the most advanced and competitively priced on the market.

Online Quote

  • Size
  • Roof vent
  • Orientation
  • Glazing
  • Glass Properties
  • Tint
  • Glazing
  • Finials & Cresting
  • Guttering
  • Frame colour
  • Blinds
  • Kerb
  • Solar power
  • Anti-slip
  • Delivery
  • Assembly costings
  • Quantity
  • Summary
Your price: £N/A
Fixed flat rooflights

Please choose your size

All of our sizes are internal, from timber to timber

Please note: larger modular sizes are available, please phone for details.

Fixed flat rooflights
1000mm x
1000mm
Do you need a bespoke size? No  Yes Bespoke toggle

Would you like to add a double glazed roof vent

Fixed flat rooflights

Choose your orientation and preferred style

Fixed flat rooflights

Please choose your Glazing

Choosing triple glazing further enhances the insulation properties of our rooflights, dropping our centre pane Ug-values.

Fixed flat rooflights

Double Glazing

Standard sizes only, with Ug-values from 1.0 w/m2k

Triple Glazing

Bespoke sizes available, with Ug-values from 0.5 w/m2k

Double Glazing

Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor.

Triple Glazing

Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor.

Choose your glass properties

Choose from four distinct glass options, to suit your project. View the range here, or call us to discuss your requirements.
All of our glass units have an easy clean coating as standard.

Fixed flat rooflights

Specification key

Ug-value Ug-value The effectiveness of a product’s thermal insulation is indicated by its Ug-value. The lower the Ug-value, the better the insulation.

G-Value G-Value A product’s ability to minimise solar gain is measured by its G-value. The lower the G-value (usually expressed as percentage), the less heat gets through.

Decibel ratings Decibel ratings A decibel value for the noise reduction rating of the glass option. The larger the value, the more noise will be reduced by.

Energy

Integer tincidunt. Cras dapibus. Vivamus elementum semper nisi. Aenean vulputate eleifend tellus.

Solar Control

Aenean leo ligula, porttitor eu, consequat vitae, eleifend ac, enim.

Noise Control

Integer tincidunt. Cras dapibus. Vivamus elementum semper nisi. Aenean vulputate eleifend tellus.

Security

Integer tincidunt. Cras dapibus. Vivamus elementum semper nisi.

Ultimate

Aenean leo ligula, porttitor eu, consequat vitae, eleifend ac, enim.

Choose your tinting preferences.

Fixed flat rooflights

Clear Tint £FREE

Clear glass is our standard option

Subtle Blue Tint Glass £100

Removes the harsh glare from sunlight and protects furniture fro m the fading effects of sunlight

Bronze Tint Glass £120

As per our light blue tint, this will reduce glare and protect the colours of your furnishings

Satinova Privacy Glass £190

Creates a natural filtered light. It is not possible to see through this glass from either side

Triple Glazed Clear (0.6 Ug-value)
(Free Promotion Offer) £380

Our triple glazed option gives the very best insulating properties, with a Ug-value of 0.6w/m2k

Triple Glazed Blue (0.6 Ug-value)
(£100 Promotion Offer) £480

Combine the benefits of subtle blue tint with super insulating triple glazed glass. 0.6w/m2k

Please choose your Glazing

Fixed flat rooflights

Clear Relex+ FREE

Subtle Blue Tint Refelx+ FREE

Easy Clean Bronze Low E FREE

Obscure/Opaque Privacy Low E £146

Triple Glazed Reflex+ Blue Tint £346

Triple Glazed Reflex+ Clear £346

Please choose your Finials & Cresting

Fixed flat rooflights

No Cresting

Traditional Cresting

Contemporay Cresting

Please choose your Guttering

Fixed flat rooflights

Choose your Aluminium roof colour

Fixed flat rooflights

Would you like black out blinds?

Our blinds come with a remote control and integrated mains adaptor as standard.
The adaptor supplied is fitted with a standard UK 3 pin plug, for a very simple installation.

Fixed flat rooflights

Would you like a bespoke builder's kerb?

We recommend our rooflights are installed with a minimum pitch of 5 degrees.
Our builder’s kerb are supplied with this pitch built-in, for a really simple installation.

Fixed flat rooflights

Solar powered module

A great option to consider if you don’t want to plan in electrical requirements and want to have a more eco-friendly rooflight (rain sensor unit is not compatible with the solar module).

Where would you like your units delivered?

Our normal delivery time is 7-10 working days. This can be longer during peak demands and onsite builds.

Please note: Mainland UK deliveries exclude Devon / Cornwall / Scotland

Fixed flat rooflights

Assembly costings

Fixed flat rooflights

How many units do you need?

Fixed flat rooflights
1

Before we take you to see the full quote,

please enter your email so we can send you a copy as well.

Your details will not be shared with any third party.





  • Homeowner
  • Builder
  • Architect

You can unsubscribe from Roof Maker communications at any time. Read our Privacy Policy for more details.

Back to configuration

Fixed flat rooflights

More about your WALL ABUTMENT ROOFLIGHTS

  • Built-in insulated upstand included for FREE
  • Bespoke sizes available at no extra cost!
  • Industry leading Ug-values of 0.6 W/m²
  • Price Match Promise

0% Finance Options Available

We can offer you a simple way to spread the cost of home renovations and improvements, in association with Omni Capital.

Please give one of our helpful sales advisors a call to discuss our available finance products


Need Help?

Call our friendly sales team now to discuss this price and product in more detail

Call us: 0116 269 6297

WALL ABUTMENT ROOFLIGHTS

£1330 Add to basket

SIZE£4385.00

100mm x 1000mm

COLOUR £120.00

Light blue

BLINDS £620.00

White Blinds

DELIVERY FREE

Collection from Factory

Subtotal 5125.00

VAT £1025.00

TOTAL £6150.00

Back to configuration

WALL ABUTMENT ROOFLIGHTS

£6150.00

Fixed flat rooflights

Show More on WALL ABUTMENT ROOFLIGHTS +

Show less on WALL ABUTMENT ROOFLIGHTS -

  • Built-in insulated upstand included for FREE
  • Bespoke sizes available at no extra cost!
  • Industry leading Ug-values of 0.6 W/m²
  • Price Match Promise

SIZE£4385.00

100mm x 1000mm

COLOUR £120.00

Light blue

BLINDS £620.00

White Blinds

DELIVERY FREE

Collection from Factory

Subtotal £5125.00

VAT £1025.00

TOTAL £6150.00

Need Help?

Call our friendly sales team now to discuss this price and product in more detail

Call us: 0116 269 6297

0% Finance Options Available

We can offer you a simple way to spread the cost of home renovations and improvements, in association with Omni Capital.

Please give one of our helpful sales advisors a call to discuss our available finance products
previous next

Product Overview

Key Features

  • Our Reflex® units are available triple-glazed with 6mm toughened safety glass. They feature two 16mm, argon-filled cavities separated by a foam spacer.

  • Choosing a triple glazed rooflight gives you unrivaled thermal efficiency, and superior noise control – perfect for busy locations where you need peace and quiet to live or work.

  • The glass is coated with a durable easy clean coating to protect it from discolouration and promote dirt and grime to slide off during rain fall,  helping to reduce the manual cleaning effort.

Get your quote online

Technical Spec

Insulated upstand built in

  • To comply with building and safety regulations, all skylights must be fitted with an upstand to keep the glazing unit raised above the surface of the roof.

  • We recommend that our flat rooflights are installed with a minimum of five degrees pitch.

  • Your rooflight will need to be flashed following installation with your chosen roof membrane or a separate flashing kit. Find out more by reading the installation guide in the Technical Document Hub

Get your quote online

Glass

Toughened safety glass. Ug-values as low as 0.5 w/m2k

Frame

Aluminium with insulating resin thermal breaks

Warranty

20 year seal warranty

Glazing Standards

Tested to BS EN1279 parts 2 & 3

Weather resistance

Tested to BS 6375 Pt 1 standards

Sound Insulation

ISO 717-1/A1
