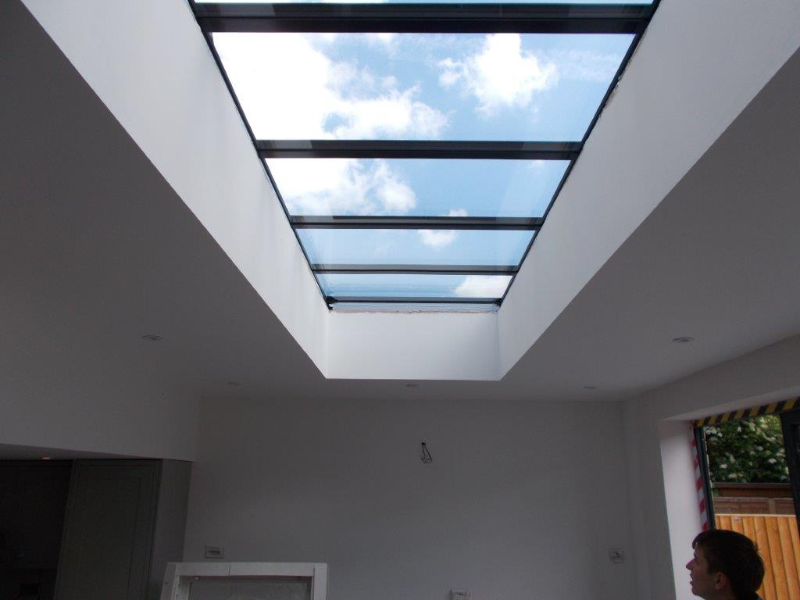

Modular Rooflights

The Modular rooflight system allows you to create a larger design by joining glass panels together in a line. Each one is added using minimal steel support, which strengthens the structure without compromising the flow of light.

Modular rooflights can be combined in many different configurations, creating distinctive solutions for buildings old and new.

Modular rooflights are perfect if you are challenged with an unusual space, constrained by building regulations or perhaps just want to create something really different or unusual – the flexibility of the system lends itself to solving many design and build issues. By using supporting splits you can create roof windows up to 10 metres long, and 2 metres wide.

Using our Modular system means you can cover a large roof area – far larger than with standard rooflights. Modular rooflights sit flat to your roof and are barely visible at ground level. They let in a huge amount of light without needing height which can help with buildings regulation approvals where there are restrictions on height or structure.



Product Overview

  • All our Modular rooflights are tested to BS 6375 Pt 1 weather resistance standard.
  • Our glazing is tested to BS EN1279 parts 2 & 3.
  • Aluminium construction.
  • Made to measure sizing up to 10m long.
  • The ceramic decorative border to the glass protects your seals from UV damage.
  • Choice of glass specifications and tints to suit your requirements.

Key Features

  • Suitable for flat roofs of between 0 and 15 degrees
  • Full aluminium, thermally broken frame
  • Triple glazed
  • Ug-values of 0.6w/m2k as standard and as low as 0.2w/m2k with quad glazing
  • Jet black (RAL 9005) or Anthracite Grey (RAL 7016) frames
  • Quick and easy to install

Optional features

  • Choice of specialist glass types
  • Different glass tints
  • Jet black (RAL 9005) or Anthracite Grey (RAL 7016) frames
  • Remote controlled electric blackout fabric blinds
